参考标准
GJB 773A/（2A，4A/6A）-2000
GJB 773A/22
产品特性
1.电压等级：250V 300V 600V
2.耐温范围：150℃、180℃、200℃、250℃、260℃
3.方形截面：55AWG~4/0AWG
4.电缆芯数：1-99芯
5.长期抗核辐射，体积小，重量轻
6.弯曲半径：固定敷设10D；
7.导体材料：镀银、镀镍、合金

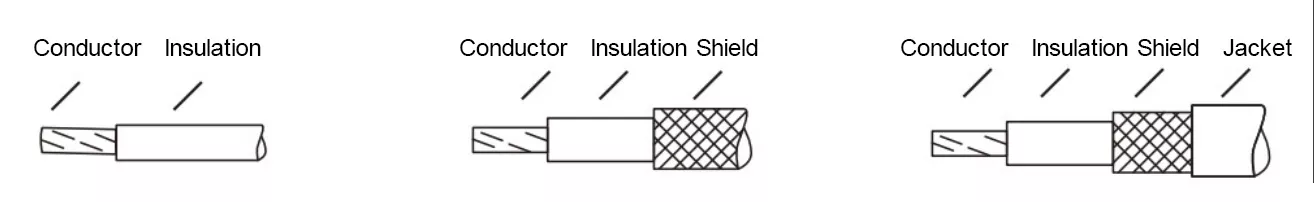

产品结构
产品结构
Material model | Proportion | Electrical indicators | Temperature rating | Mechanical strength | Flame retardant properties | Anti-nuclear radiation |
ETFE | 1.7 |  | -60-150 | 45Mpa | Flame retardant, low smoke | Radiation resistant but not long term |
XLETFE | 1.7 | | -60-180 | 48Mpa | Flame retardant, low smoke | Radiation resistant but not long term |
FEP | 2.17 | | -60-200 | 30Mpa | Flame retardant, low smoke | Not resistant to nuclear radiation |
PTFE | 2.17 | | -60-260 | 30Mpa | Flame retardant, low smoke | Not resistant to nuclear radiation |
PVDF | 1.78 |  | -40-150 | 49Mpa | Flame retardant, low smoke | Not resistant to nuclear radiation |
PFA | 2.17 | | -60-260 | 30Mpa | Flame retardant, low smoke | Not resistant to nuclear radiation |
PEEK | 1.3 |  | -60-200 | 100Mpa | Low smoke, halogen free, flame retardant | long-term radiation resistance |
PI | 1.33 |  | -190-235 | 90Mpa | Low smoke, halogen free, flame retardant | long-term radiation resistance |
