参考标准
GJB 773A/（2A，4A/6A）-2000
GJB 773A/22
产品特性
1.电压等级：250V 300V 600V
2.耐温范围：-60～220℃，-190～220℃
3.方形截面：32AWG~18AWG
4.电缆芯数：1-99芯
5.长期抗核辐射，体积小，重量轻
5.通过BS6853、DIN5510-2、EN45545-2防火R15、R16（HL3级）
6.弯曲半径：固定敷设10D；
7.耐溶剂、耐酸碱
8： 导体材料：镀银、镀镍、合金

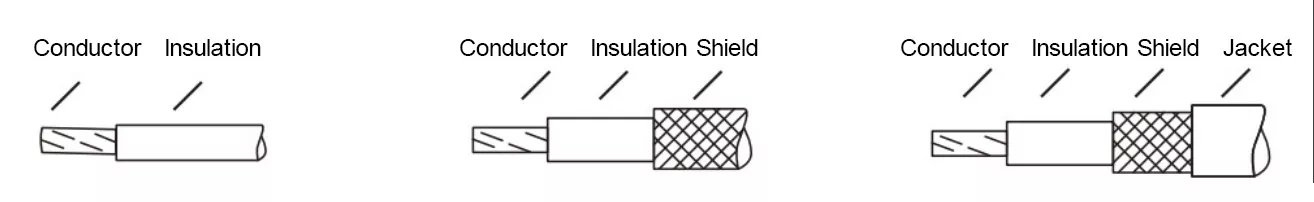

产品结构
产品类别和命名
Product Category | Product number | Product Category | Number of cores | Section squared | Temperature rating |
PEEK series | 100A00001 | Silver plated copper core PEEK insulated wire and cable | 1 core | 32AWG-18AWG | -60-220℃ |
100A00002 | Silver plated copper core PEEK insulated wire and cable | 1 core | 32AWG-18AWG | -60-220℃ | |
100A00003 | Silver plated copper core PEEK insulation silver plated round copper wire braided shield XETFE sheathed wire and cable | 1 core | 32AWG-18AWG | -60-220℃ | |
100A10001 | Silver-plated copper core PEEK insulated silver-plated round copper wire braided shielded multi-core cable | 1 core | 32AWG-18AWG | -60-220℃ | |
100A10111 | Silver-plated copper core PEEK insulated silver-plated round copper wire braided shielded PEEK sheathed multi-core cable | 2-99 core | 32AWG-18AWG | -60-220℃ | |
PI series | 100B00001 | Silver-plated copper core PI insulated wire and cable | 1 core | 32AWG-18AWG | -190-220℃ |
100B00002 | Silver plated copper core PI insulation silver plated round copper wire braided shielded wire and cable | 1 core | 32AWG-18AWG | -190-220℃ | |
100B00003 | Silver plated copper core PI insulation silver plated round copper wire braided shield PI sheathed wire and cable | 1 core | 32AWG-18AWG | -190-220℃ | |
100B10001 | Silver-plated copper core PI insulated silver-plated round copper wire braided shielded multi-core cable | 1 core | 32AWG-18AWG | -190-220℃ | |
100B10111 | Silver plated copper core PI insulation silver plated round copper wire braided shield PEEK sheathed multi-core cable | 2-99 core | 32AWG-18AWG | -190-220℃ | |
