参考标准
JB/T8139标准
JB/T10696标准
国标T5013
Q/TST-06-2018

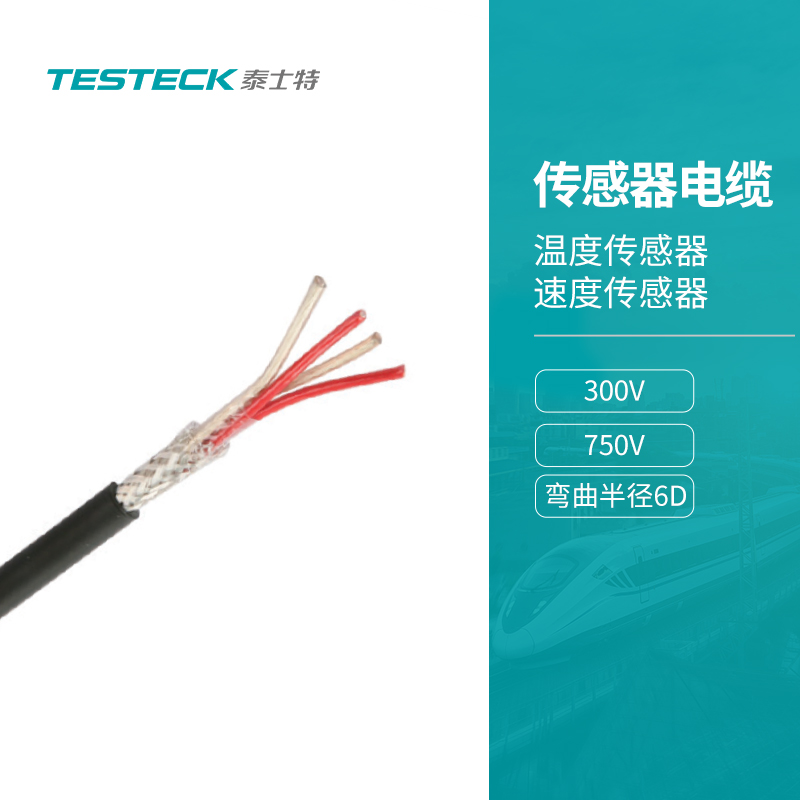

产品特性
1.额定电压:300V 600V 1000V
2.截面积:(32AWG-1.0mm2)
3.电缆芯数:1-48芯
4.导体:镀锡、镀银、镀镍、裸铜、合金
5.弯曲半径6D(特殊要求)
材料特性
Fluoropolymer | Special thermoplastic material | Elastomeric material | ||
PVDF | PI | PEEK | TPU | |
Long-term operating temperature(20000h) | -100~+135℃ | -190~+220℃ | -60~ +220℃ | -50℃~+80℃ |
Short-term operating temperature(3000h) | 150℃ | 260℃ | 250℃ | 115℃ |
Chemical resistance | ++ | + | + | + |
Halogen free | × | √ | √ | √ |
ROHS compliance | √ | √ | √ | √ |
REACH compliance | √ | √ | √ | √ |
