参考标准
2016年12月12日
GB/T 12528标准
质量控制/T1037-2016
产品特性
1.额定电压:1500V
2.温度等级:-40℃~100℃,-40℃~125℃,-40~150℃
3.电缆截面:2.5~120mm2
4.导线:5类和6类软导线
5.弯曲半径5D(特殊要求)
6.耐油、耐酸碱、耐溶剂

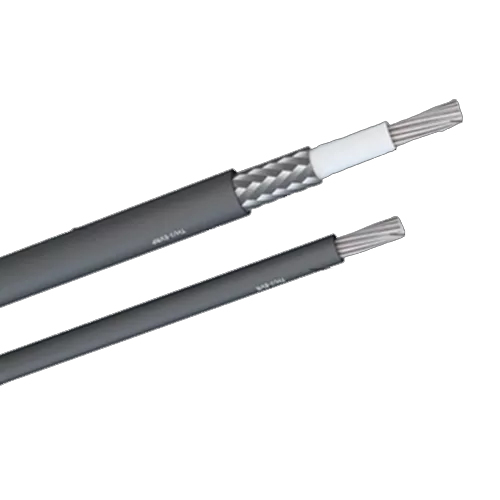

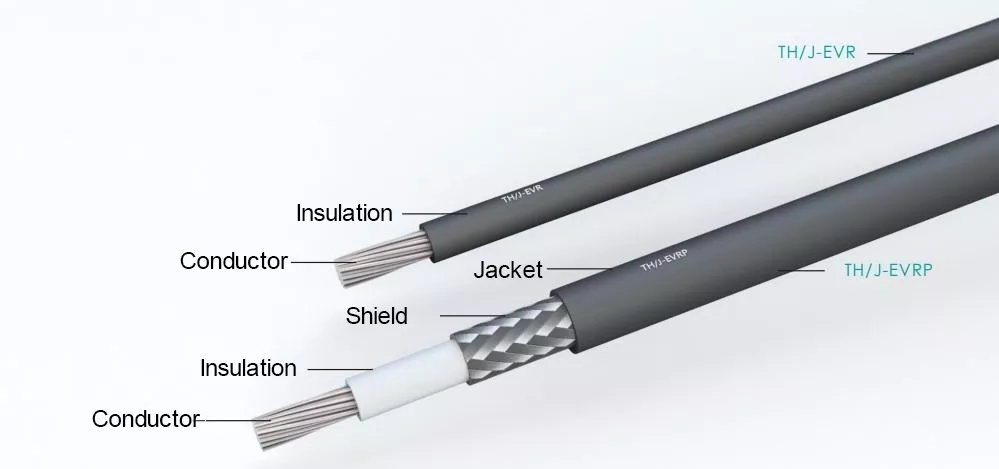

产品结构
材料组合
TESTECK/Material Combination Table | ||||
Material name | EPDM | Cross-linked polyolefin | Cross-linked PE | Silikon |
Long-term operating temperature(20000h) | -40~+90℃ | -40~+125℃ | -40~+90℃ | -50℃~+180℃ |
Short-term operating temperature(3000h) | 105℃ | 150℃ | 105℃ | 200℃ |
Chemical resistance | ++ | ++ | + | |
Halogen free | √ | √ | √ | √ |
ROHS compliance | √ | √ | √ | √ |
REACH compliance | √ | √ | √ | √ |
Abrasion resistance | ++ | +++ | + |
产品类别
Product number | Product Category | Number of cores | Section squared | Temperature rating |
TH/J-EVR | 1500V single-layer high-voltage flexible cable | 1 core | 2.5-120mm2 | -40-150℃ |
TH/J -EVRP | 1500V single-layer shielded high-voltage flexible cable | 1 core | 2.5-120mm2 | -40-150℃ |
