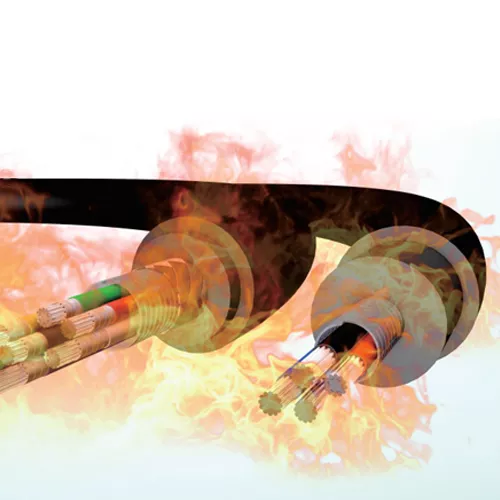

耐火电源线
该系列电缆具有低烟、无卤和阻燃性。在火灾条件下,通电或将通电的电缆仍将在90分钟或120分钟内保持正常运行。

主要用于:1。关键保护操作系统(案例系统)2。中央控制系统(命令)3。中央计算机(数据)4。安全通道(照明)5。紧急通知(广播)6。灭火系统(自动电动泵和自动阀)7。综合消防系统(地下、公共室内人群区域)
在线咨询
产品详情

参考标准

1.GB/T12706-2008额定电压1KV及以下电缆

2、GB/T19666-2008《阻燃耐火电缆通则》

3.EN50200-2015应急电路用无保护小型电缆耐火性试验方法

产品特点

1.电压等级:300V 600V 1800V

2.耐温范围:-40-90℃

3.截面积:1.5-240mm2

4.电缆芯数:1-5芯

5.耐火时间:90min 120min,采用陶瓷硅胶绝缘系统,可承受15分钟的消防水喷淋,电路仍持续工作。

6、弯曲半径:固定敷设5D;非固定敷设6D(D为电缆外径)

产品结构

注意事项:

1.耐火电缆安装。耐火电缆不能直接弯曲90°(电缆耐火层会长期应力开裂)。

2.所有耐火电缆的端子和连接端应防潮(耐火层具有吸湿性,会影响线路的电气性能)。

3.电缆导体的横截面应为1至2个较大的设计横截面。不建议选择较小的横截面,例如0.5mm²及以下,这可能会熔断导体(仅供参考)

4.电缆外径应尽量使用直径小于20mm的电力控制电缆。如果电缆大于20mm,燃烧时间将增加。

产品类别和命名

Product number

Product Category

Number of cores

Section squared

Temperature rating

Z(A-D)N-VV

Fire-retardant and flame-retardant A-D class 70℃ PVC insulated PVC sheathed power cable

1-5 core

1.5-240mm2

-40-70℃

WDZN(A-D)-YJY

Fire-resistant low-smoke halogen-free flame-retardant 90℃ cross-linked polyolefin insulated polyolefin sheathed power cable

1-5 core

1.5-240mm2

-40-90℃

WDZN(A-D)-TGJY

Fire-resistant, low-smoke, halogen-free, flame-retardant, 90°C cross-linked ceramic silica gel insulated polyolefin sheathed power cable

1-5 core

1.5-240mm2

-40-90℃

Z(A-D)N-KVVP

Fire-retardant and flame-retardant A-D class 70℃ PVC insulated PVC sheathed power cable

2-61 core

0.75-10mm2

-40-70℃

WDZN(A-D)-KYJYP

Fire-resistant low-smoke halogen-free flame-retardant 90℃ cross-linked polyolefin insulated polyolefin sheathed power cable

2-61 core

0.75-10mm2

-40-90℃

WDZN(A-D)-KTGJYP

Fire-resistant, low-smoke, halogen-free, flame-retardant, 90°C cross-linked ceramic silica gel insulated polyolefin sheathed power cable

2-61 core

0.75-10mm2

-40-90℃
